佳能（CANON）控制線
產品說明：
1、使用機型：Canon M Series  Canon 5D Series
2、支持功能：快門 /錄像
3、使用方法：
(1）連接：
a.首先需要連接手機APP，在“通用設置”頁面，選擇相機品牌為“CANON”。

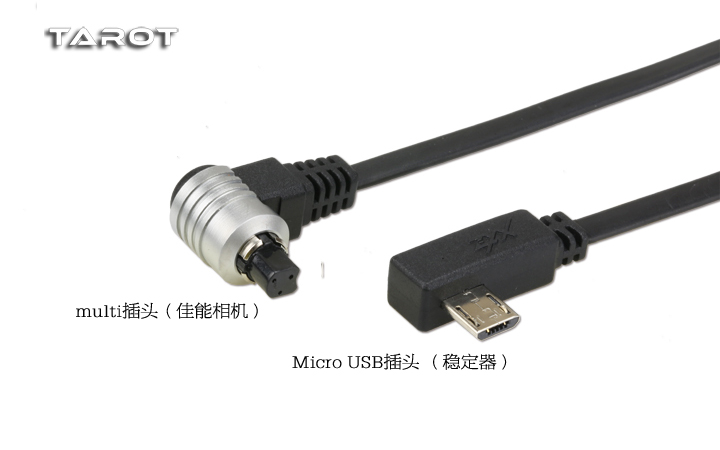

b.首先將控制線的Micro USB插頭與穩定器俯仰軸電機內側的相機控制接口相連，然后另一頭連接相機的控制接口。
(2）操作：
a.快門（包含對焦動作）：單擊“電源按鍵”實現單次拍照。
b.對焦：推動手柄上面的撥桿往“W”方向（上）實現廣角，往“T”方向（下）實現對焦。

 CANON Control Cable
1.Supported devices: other models of 5D series
2.Supported functions: shutter/picture recording
3.How to Use:
(1)Connection:
a. First, connect APP of your phone, and select camera brand “CANON” in “General Setting” interface.

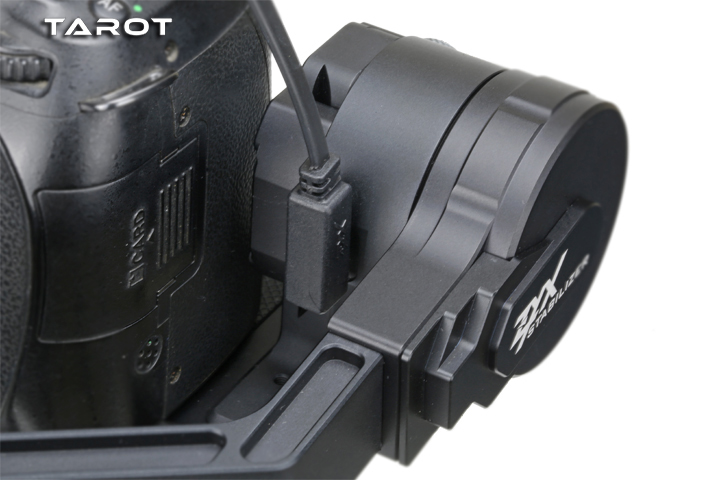

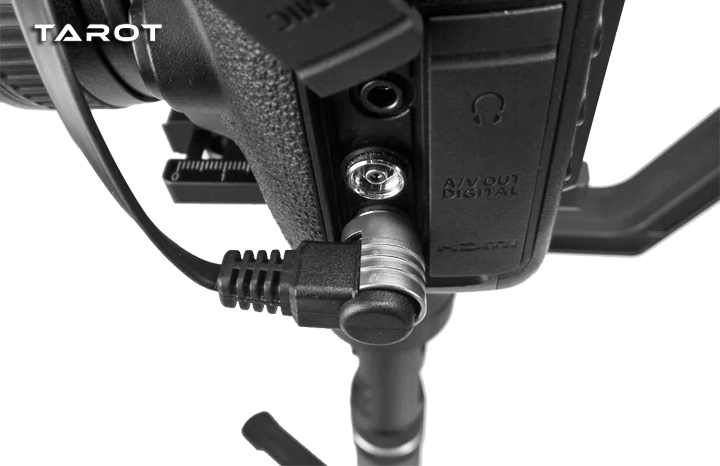

b.  First connect Micro USB plug of control line with camera control interface on the inner side of pitch axis motor of stabilizer, and then fix the other end (with infrared lamp) on the stabilizer and align it with infrared access port of camera.
(2) Operation:
a. Shutter (including focusing action): click “power button” to realize one-time capture.
b. Zoom: push driving lever on handle towards  “W” (up) to or “T” (down) to realize zoom.

產品規格：
佳能（CANON）控制線×1
長度：33 cm
重量：12.5 g
